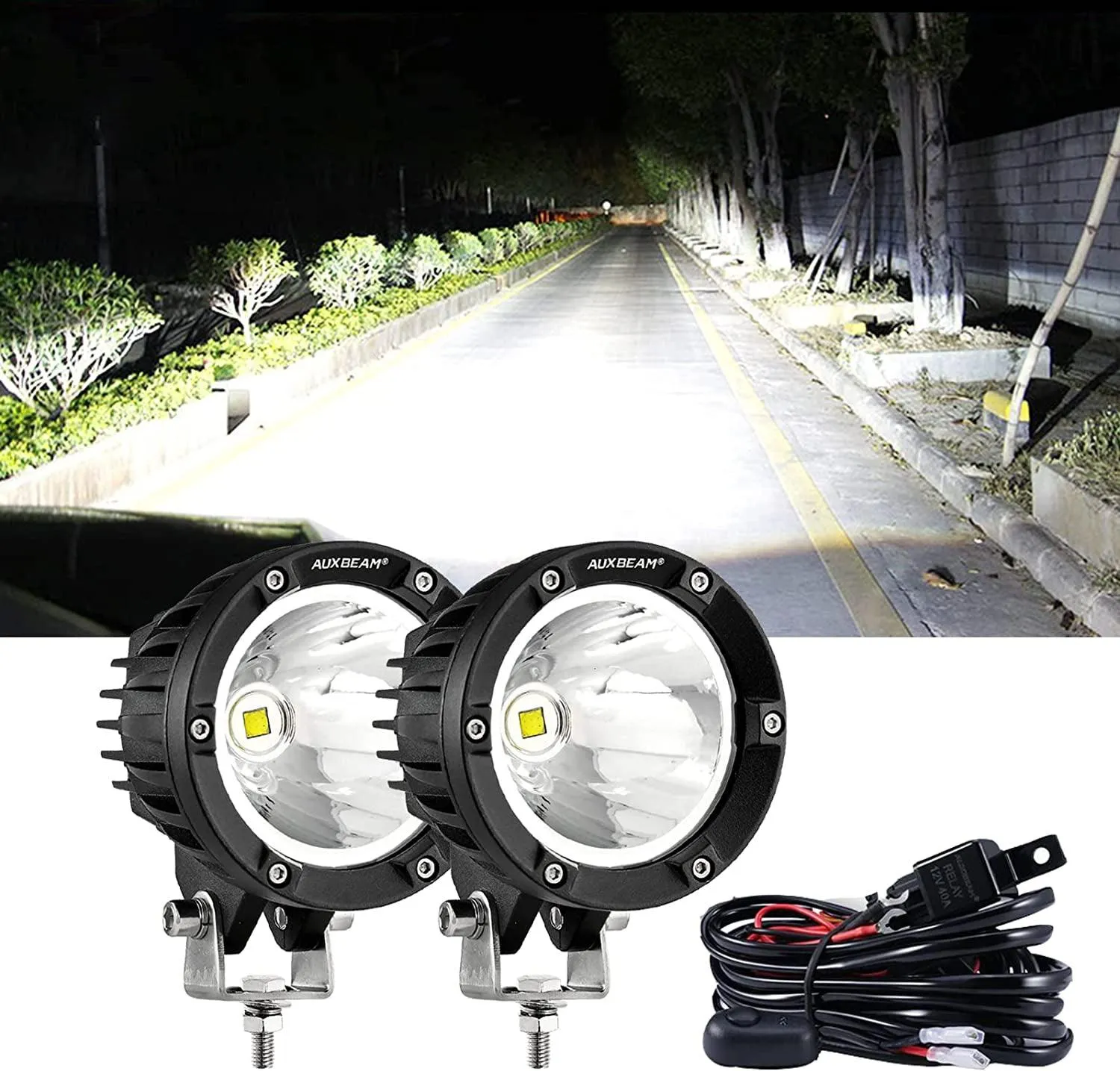

▶4 Inch Pod Lights
Features:
High-quality 6063 aluminum body, durable to withstand any harsh condition.
Die-cast aluminum alloy cooling fin design for better cooling.
IP67 rated waterproof & dustproof, durable enough to withstand any harsh environments, about 50,000 hours life time.
Built-in intelligent IC, EMC technology to achieve faster on/off response time.

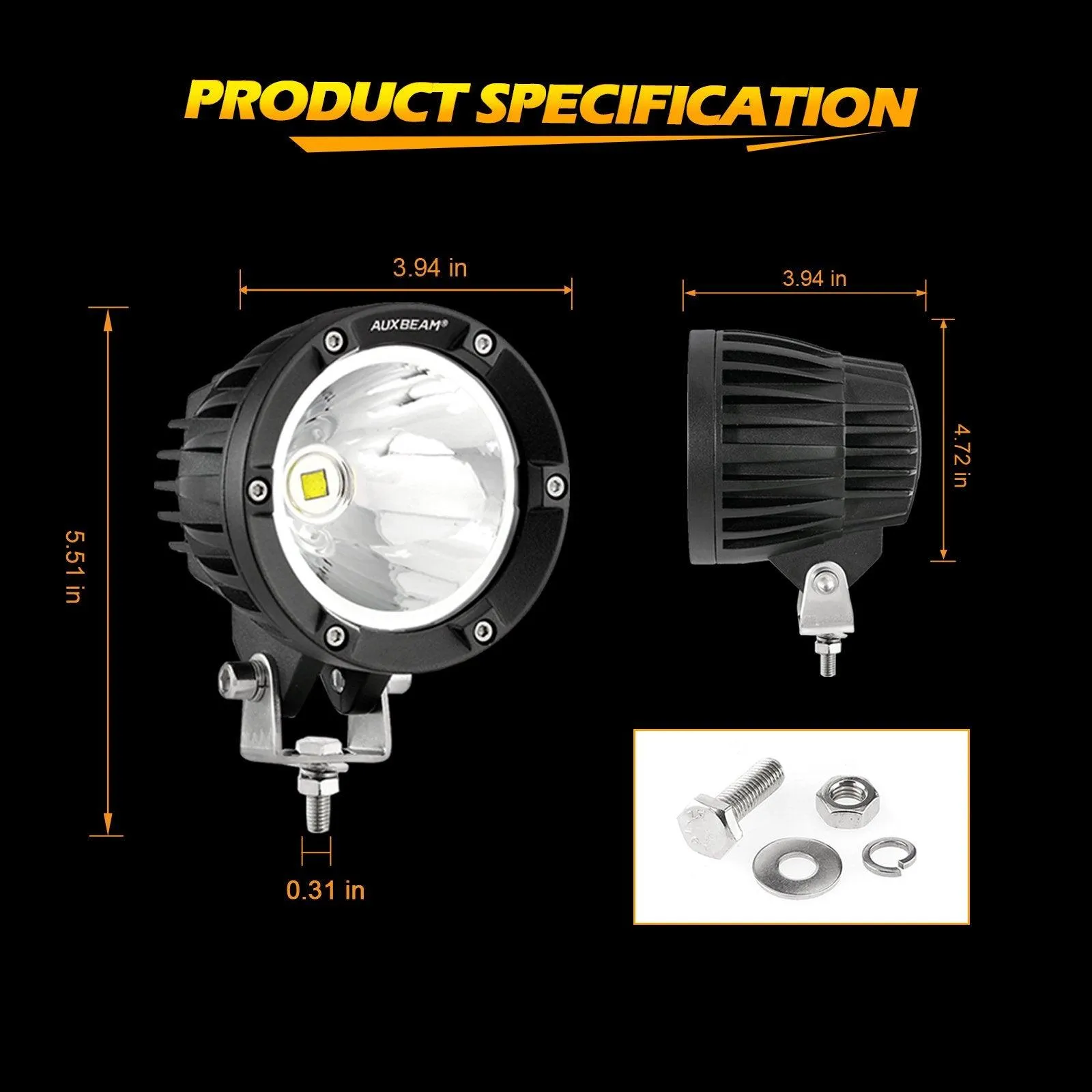

Specifications:
LED Type: 7070 chips
Power: 100W(pair)
Color Temperature:6500K Cool White
Beam Type: Spot Beam
Operating Voltage: 9-32V
Material: Black Diecast Aluminum Alloy Housing
Mounting Bracket: Stainless steel
Waterproof Rate: IP67
Working Temperature:-40~85 degree Celsius
Lifespan: 50,000 Hours
Package Included:
2 X LED Work Lights
1 X Wiring Harness
▶4 Inch Black Covers
Added Protection: LED pods light protective cover offers an extra protection for your light, protect the lens of your lights from scratch, rain, fog, dust, snow, outer damage.
High Durability: Auxbeam 4 inch light cover is made of unbreakable solid strong transmission polycarbonate with high hardness.
Easy to Install: Snap-on design, these 4" covers securely fasten to the ff-road lights, preventing vibration and falling off, so swapping them out is quick and simple.

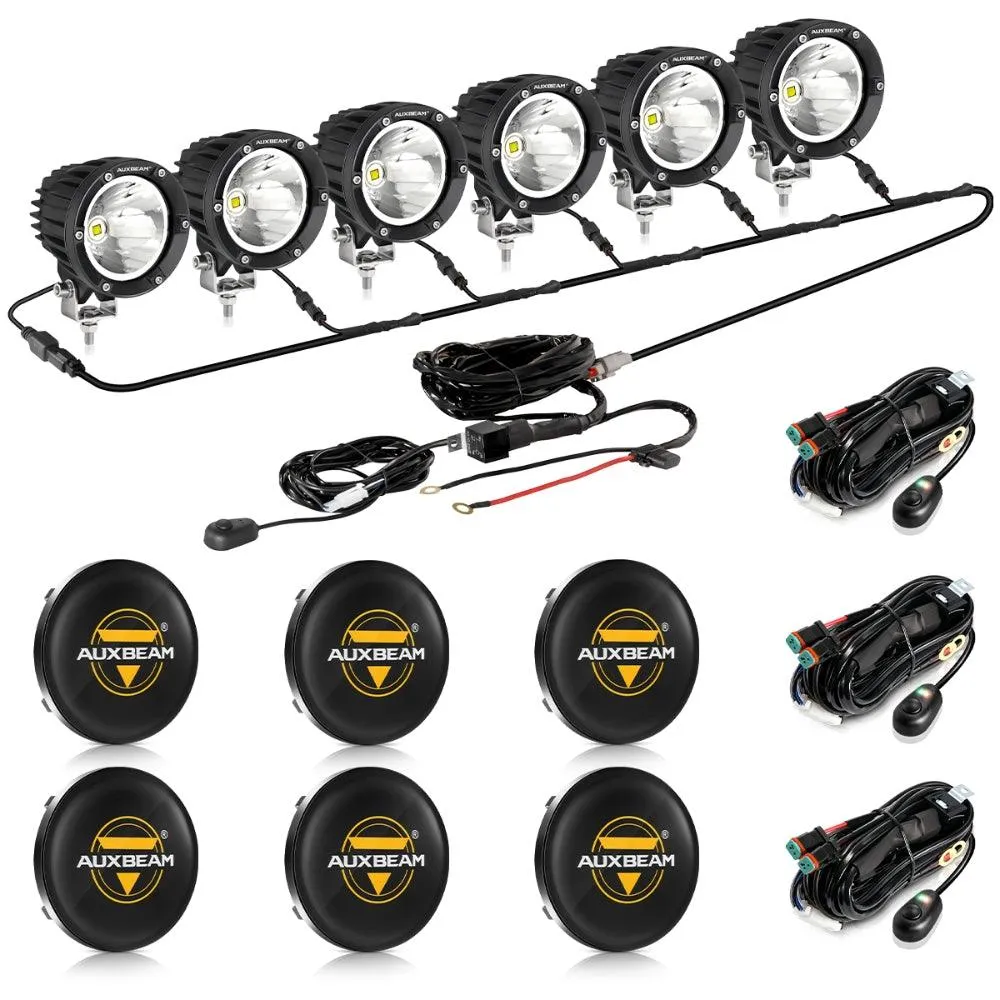

▶ 6-Pod Power Harness
Recommend Fit for Our Pod Light SKU:
6-Pod Lights (A maximum of six pod lights can be installed):
ZD000670/ZD000671/ZD000749/ZD000750/ZD000668/ZD000669
ZD000676/ZD000817/ZD000818/ZD000819/ZD000683/ZD000618
ZD000658/ZD000659/ZD000672/ZD000706/ZD000711/ZD000692
4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/77721738
3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675
Features:
Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.
Specification:
Connect Number Light：Max 6 Pods
Switch Button: Single Mode（ON/OFF Main Light）
Wire Length: 3M Extension Cord 1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W（current 40A）
Fuse Size: 40A
Applicable: LED Driving Light Pods Single Mode Only Main Light (without Day Running Lights or Turn Signal Lights)
Packing Included:
1 x 6-Pod Power Harness (Pod lights not included)
